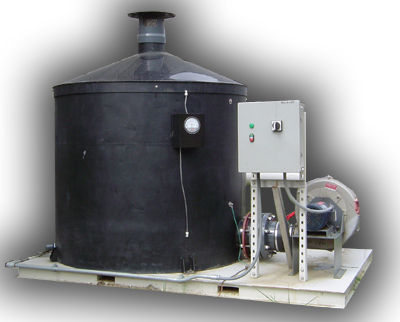

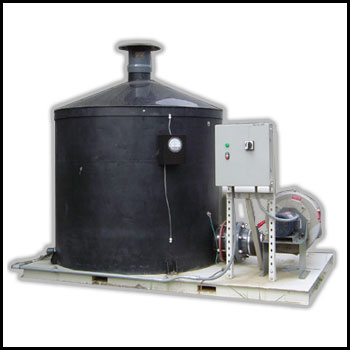

Wolverine Brand Vapor Phase Adsorber
Model HDPE42
For Air Flows From 351-500 CFM
Our Model HDPE-42 Adsorbers are factory assembled in a complete package. All that is required is the electrical hook up and inlet piping to your odor source. Typical applications include Nuance odor and VOC control from tank vents, sumps, lift station wet wells, drum filling operations, sludge press room odor control.
Operation and Owners Manual
Industrial Vapor Phase Adsorber Brochure
HDPE 42 Industrial Vapor Phase Adsorber Spec Sheet
Wolverine Brand HDPE-42 Industrial Vapor Phase Adsorber Specifications
Adsorber Vessel
- Made of HDPE or High Density Poly Ethylene for corrosion resistance and durability
- Height: Approx: 60 in (152 cm) Cad Drawing with specs
- Diameter: 42in. (106 cm)
- Carbon Capacity
- Regular Carbon: 800 lb (363kg)
- Caustic Carbon (Impregnated) : 1000 lb (454kg)
- Catalytic Carbon: 800 (363kg)
- Inlet: 6 Inch Pipe Outlet: 6 Inch Pipe
- Adjustable inlet Dampener for air flow adjustment-standard
- Removable upper lid is mounted utilizing three ¼”-20 stainless steel bolts for easy carbon bed change out.
- Magnehelic Differential Pressure Gauge model 2005-standard More Information
- Condensation drain-standard
- Stainless steel carbon bed grounding rod-standard
- FRP Carbon support bed / air plenum for corrosion resistance-standard
- Equipped with mounting tabs to secure to skid or cement slab
- Vessels can be used as a stand alone adsorber or utilized in Series (Treatment Train) or in Parallel
- 1 Year Limited Warranty More Information
Cincinnati Fans Pressure Blower PB-10A For HDPE-42
- 1 HP.
- Cast aluminum, spark resistant, self-cleaning wheel
- Cast aluminum housing
- Motors are available in the following voltages/ratings V/Phase/HZ
- 115-230/1/60
- 208-230/3/60
- 460/3/60
- Motor Ratings:
- TEFC (Totally Enclosed Fan Cooled) has external fan as an integral part of the motor, to provide cooling by blowing air around the outside frame of the motor.
- EXP: (Explosion-proof motors) - These motors meet Underwriters Laboratories (UL) and Canadian Standards Association standards for use in hazardous (explosive) locations, as indicated by the UL label affixed to the motor. (Locations are considered hazardous because the atmosphere does or may contain gas, vapor, or dust in explosive quantities.)
View Cincinnati Fans:
Spec Catalog Pop
Operating and Maintenance Manual
Storage Manual
Control Panels
- Housing is of FRP (Fiberglass Reinforced Plastic) construction.
- Controls manufactured by Moeller Electric
- Available in the following configurations: (Voltage/Phase/HZ)
- 115/1/60
- 230/1/60
- 208-230/3/60
- 460/3/60
- The following controls come as standard equipment on our control panels
- Lockable disconnect
- Run Light
- 3 position switch-(on/off/auto)
Skids
- The HDPE-39 utilizes an epoxy coated steel 2x4, 12 gauge deck industrial skid measuring 42” X 72”
- Built in fork slits for easy mobility of the unit
- Price of skid includes an assembly fee of your HDPE-42 Industrial Vapor Phase Adsorber
Rain Hat
All our Vapor Phase Adsorbers come standard with rain cap and bug/bird screen.
Use and Care of Activated Carbon
Activated Carbon Principle of Operation
Activated Carbons and Potassium Permanganate: All of our Industrial Vapor Phase Adsorbers come standard with sulfursorb plus catalytic activated carbon.
The following media is available as an option at no additional cost: (Click on links below for more information)
